How does Balustrading Support Clamps fix the glass

2021/11/12 11:59
Page view

Balustrading Support Clamps fix the glass by clamps. Therefore, the joint always protrudes from the glass surface, and the design of the exterior directly affects the effect of the entire building. Therefore, it is required that the design of this connector should be as novel and beautiful as possible under the condition of satisfying the stress. The elegant and novel exterior design will not only not destroy the overall effect of the building, but can enhance its beauty.

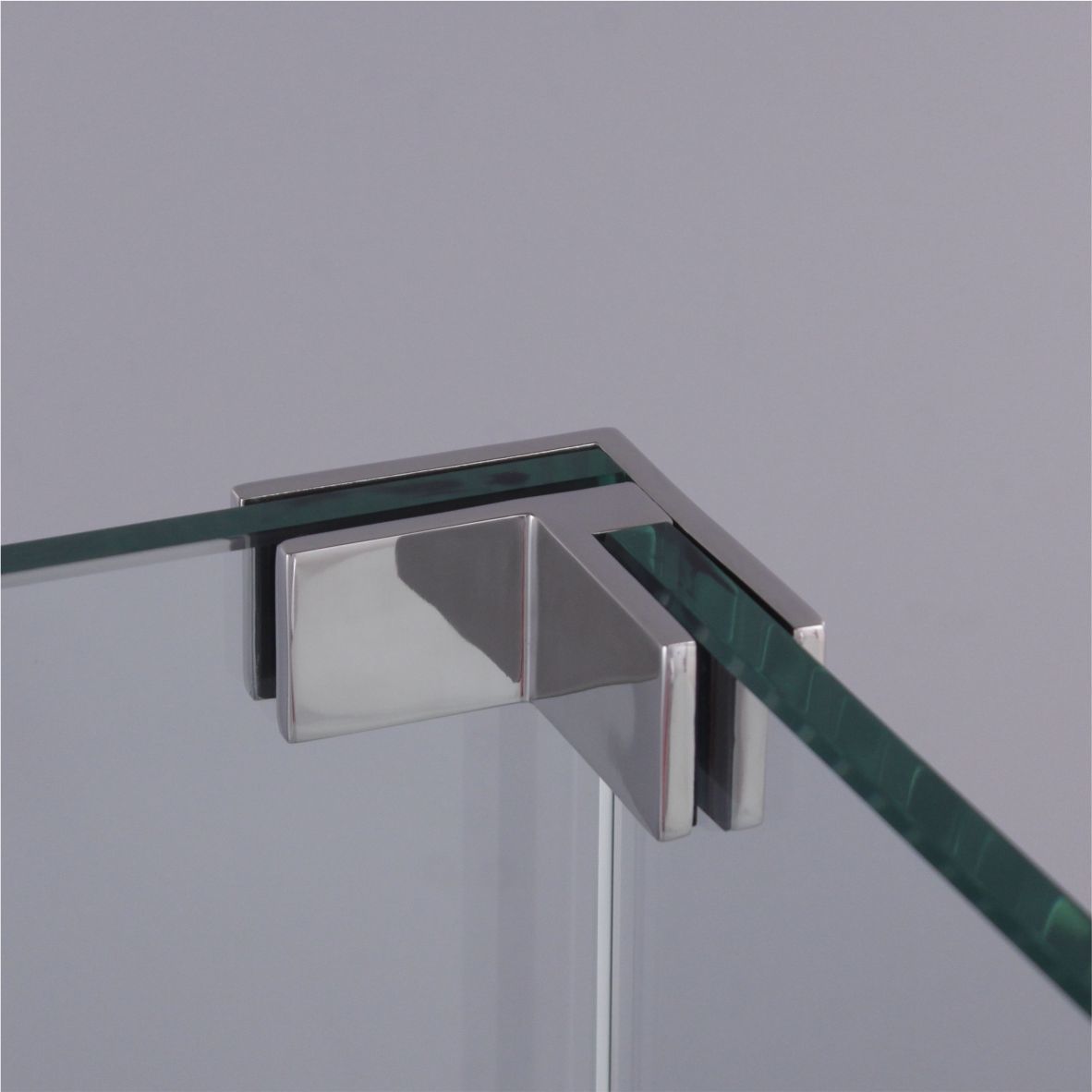

china Balustrading Support Clamps

1. Opposite-side clamping means that the connecting piece is installed in the glue seam of two opposite sides, the connecting claws clamp the two adjacent glass edges, and two connecting pieces are used for each side of the upper and lower sides. The characteristic of this method is that the number of accessories used is small, and the structure is relatively simple. The disadvantage is that the size of the glass allowed to be used is relatively small, and the load-bearing capacity of the joint is relatively high.
2. The four-side clamping type means that the connecting piece is installed in the glue seam around the glass to clamp the two adjacent glass edges, and each side uses two connecting pieces. The characteristic of this method is that the glass plates allowed to be used are larger. Since the number of joints used is larger than the previous one, the cost is also higher than the previous one.
3. The four-corner clamping type means that the connecting piece is installed in the glue seam where the four corners of the glass plate intersect, clamping four (or more) glass corners, and there is a connecting piece at each intersection. Usually, the docking claw can be omitted, but the disadvantage is that the shape is relatively large.

The truss or column and column beam components of Balustrading Support Clamps are generally processed in the factory and then transported to the construction site for installation. The quality is easier to guarantee. The position of Balustrading Support Clamps has been determined on the components. Although the installation of trusses or columns and beams requires measurement positioning and segmented control to avoid error accumulation, errors are inevitable due to various reasons. Therefore, after the docking claws are initially in place, the control point measurement and verification should be carried out, and the docking claws should be pulled in all directions (thin steel wires) to check the deviation of each docking point. The installation of docking claws and adjustment of deviation are the top priorities. The installation quality requirements are: the distance between the centers of two adjacent joint claw sleeves is ±1.0 mm; the center height difference of two adjacent joint claw sleeves is ±1.0 mm; the levelness of three adjacent joint claws is 1.0 mm; The level of the two holes of the claw is 1.0 mm; the angle deviation between the claw arm and the horizontal (vertical) is 15.

The manufacturer of Balustrading Support Clamps is committed to the development and application of stainless steel products represented by Balustrading Support Clamps, and constantly introduces advanced production technology, equipment and testing instruments to improve quality and continuously meet user needs.
